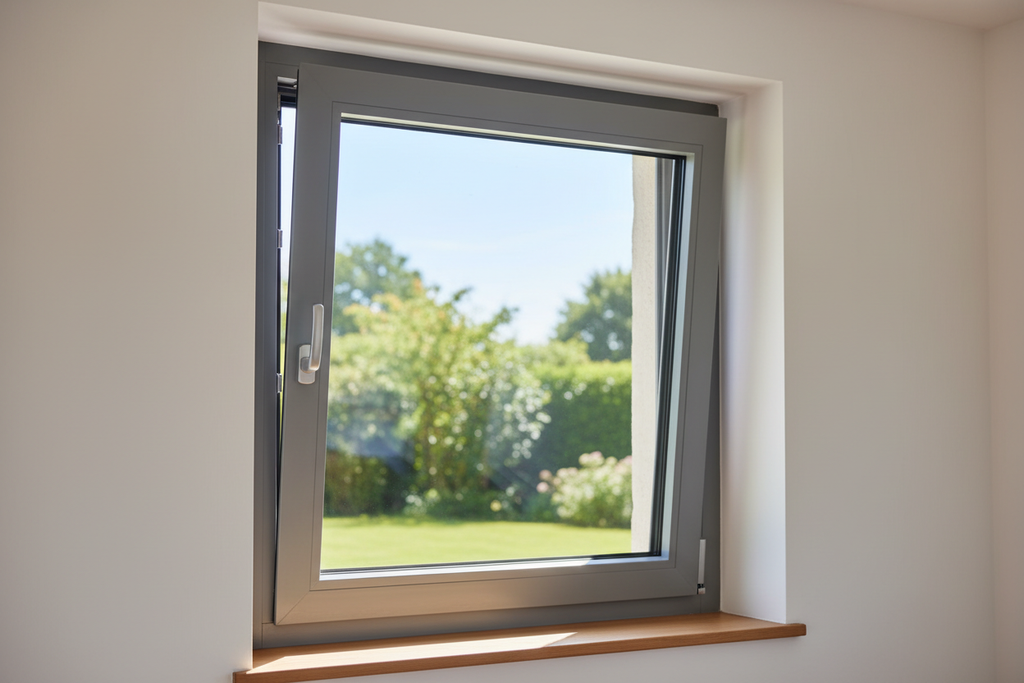

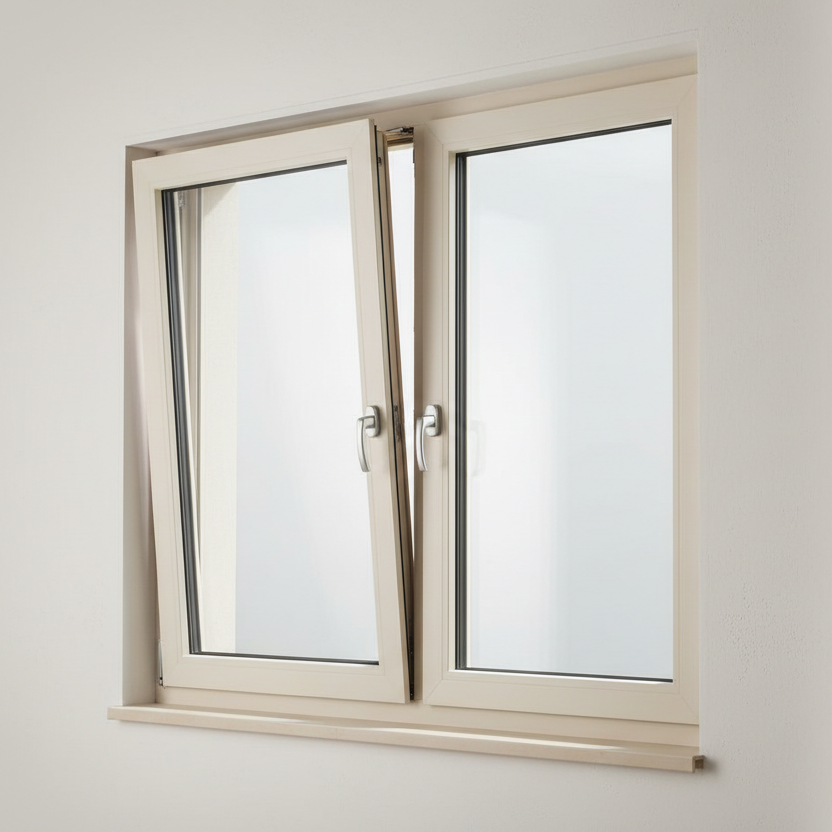

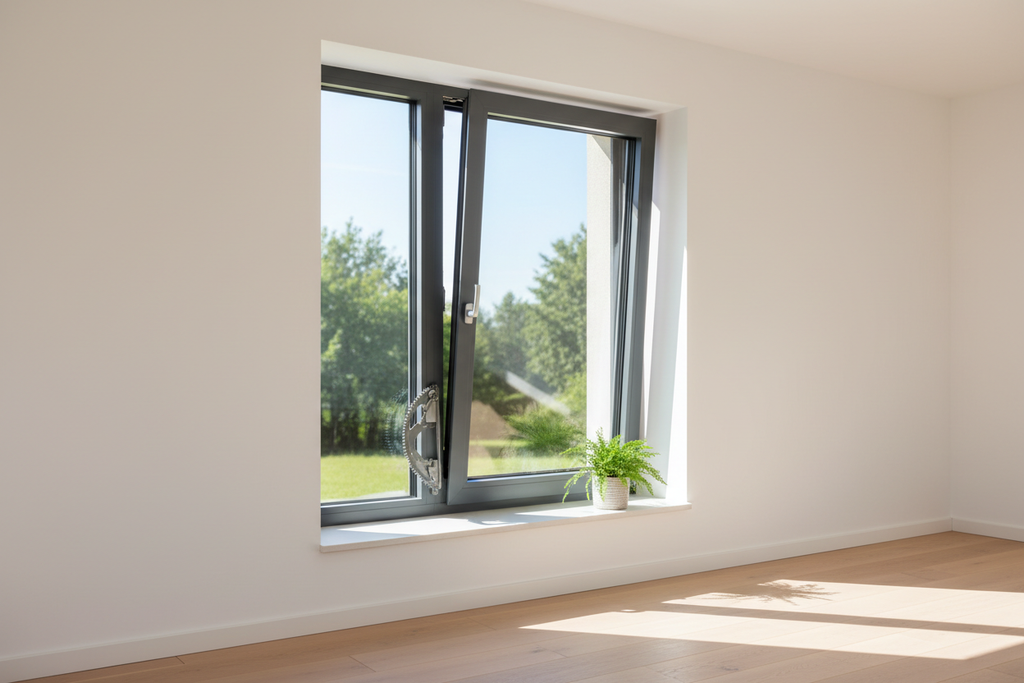

Aluminum Anti-Theft Thermal Insulation Tilt Turn Window

Aluminum Anti-Theft Thermal Insulation Tilt Turn Window

$109.00

Thermal Insulation Tilt Turn Window

Engineered for modern security and energy efficiency, this Thermal Insulation Tilt Turn Window combines advanced anti-theft mechanisms with superior thermal insulation. The dual-action design allows both tilting for ventilation and full inward opening for easy cleaning. Aluminum framing delivers exceptional durability and weather resistance, while the thermal insulation properties reduce heat transfer and lower energy costs. Ideal for residential and commercial applications where security, functionality, and climate control are priorities.

trust badge
Requesting a quote

We specialize in custom home decoration, not standard products. So if you are interested in requesting a quote, please click 'Contact' to get in touch. Our experienced team will design and create the product you desire.
Shipping

If you have your own freight forwarder, we can send the products to your forwarder .

If you don't have one, we can also ask our freight forwarder which we work with long-term to handle the transportation for you. We do not make a profit on shipping, so the shipping cost will not be high.
Manufacturing

Our products are manufactured in China and ship globally. We carefully select our material suppliers to ensure our products are high quality and a fair price.
Price level

We have broadest material options to offer. We can suggest you the suitable materials as per your need to control the price. Our products can satisfy different level market.
Creative CAD design

Hand over your floor plan or measurements data to us, and our elite design team will tailor a solution for you based on your specific specifications and provide carefully designed proposals to meet your unique needs.
Delivery time

Considering design and production ,our products are usually shipped by 20-50 workdays after payment. Different proudcts and quantity means different delivery time.
After-sales service

Our comprehensive after-sales support will give you peace of mind. Our professional sales team is committed to providing you with round-the-clock service to ensure seamless communication and satisfaction.

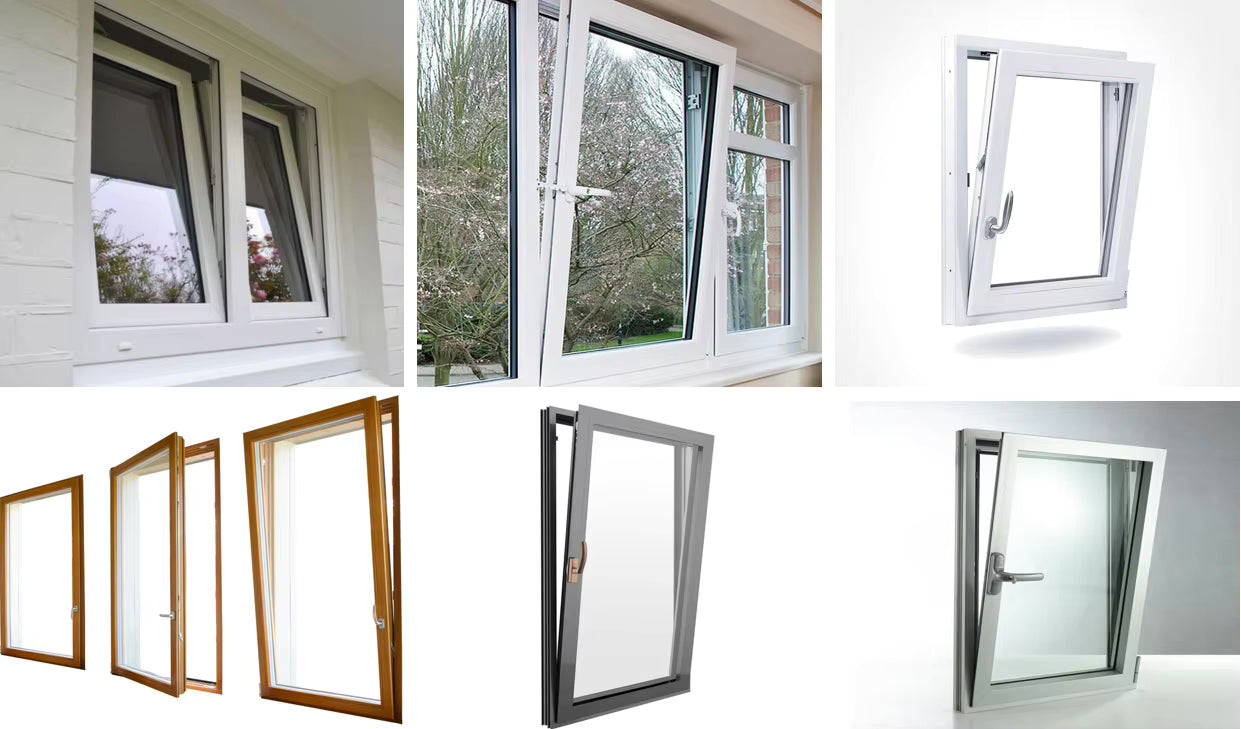

Brief Overview of Tilt Turn Window

A tilt and turn window is a highly versatile and secure European-style fenestration system featuring a dual-mode opening mechanism controlled by a single handle. Its primary function is to offer two distinct operations from the same frame: a secure"tilt"position, where the top of the sash pivots inward for controlled ventilation while the bottom remains locked, and a full"turn"(or "swing") position, where the entire sash rotates inward on side-mounted hinges like a door for maximum opening, easy cleaning, and emergency egress. This design excels in energy efficiency, security, and weatherproofing, as the sash compresses tightly against the frame on all sides when closed. It is particularly favored in modern and multi-story residential buildings for its space-saving inward swing, superior performance, and intelligent functionality.

Material

The construction prioritizes precision and durability to support the complex hardware. Frame and sash profiles are typically made from high-performance uPVC,thermally broken aluminum, or wood-aluminum composites, chosen for their stability, strength, and excellent thermal insulation properties. The glazing is almost always a high-specification double- or triple-pane insulated glass unit (IGU)with low-emissivity (Low-E) coatings and argon gas fill to maximize energy efficiency, which is a key selling point. The most critical material component is the heavy-duty hardware system, manufactured from galvanized or stainless steel to withstand constant use. This includes the multi-point locking gear, robust hinges, and the transmission mechanism that converts the handle's rotation into either tilt or turn action. High-quality compression seals around the entire perimeter are essential for achieving an airtight and watertight seal in both closed and tilted positions.

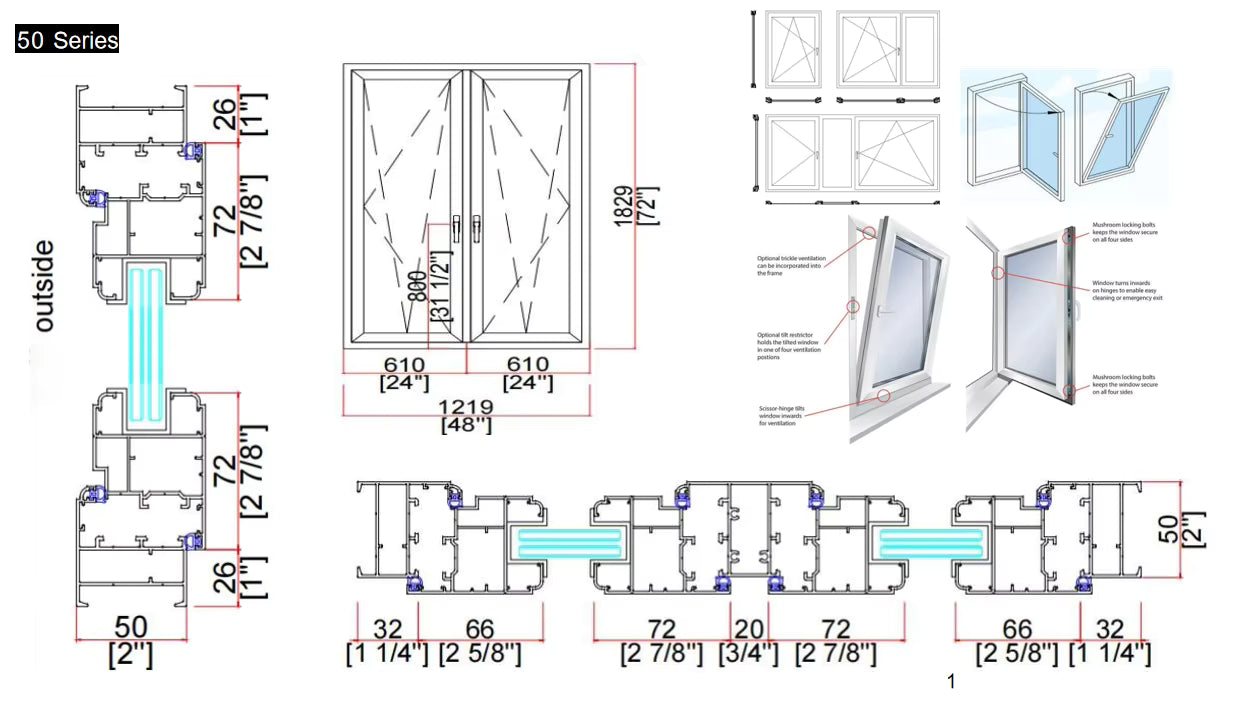

Design Drawings & Key Components

The design is engineered around an integrated mechanical system. Key parts, detailed in technical drawings, include:

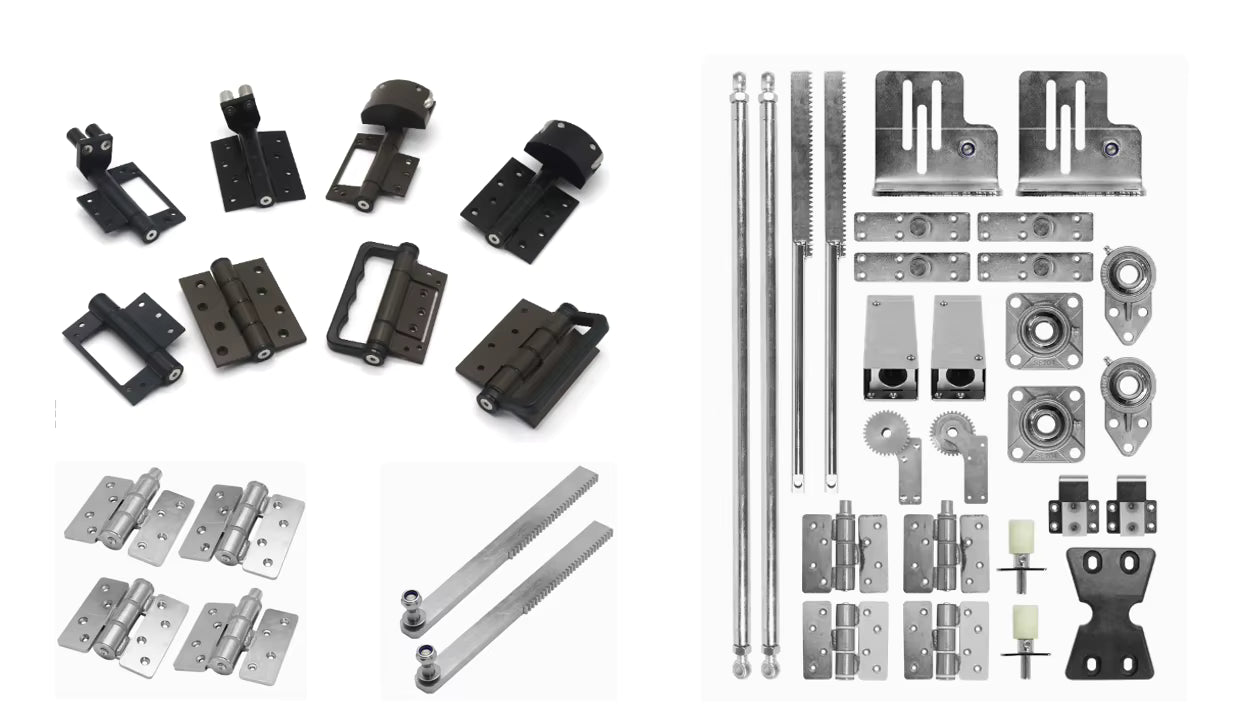

  1. Operating Handle: The single control that engages the locking mechanism via a crank gear.
  2. Multipoint Locking System: A series of lock pins or rollers mounted on all four sides of the sash that engage with striker plates on the frame. The pattern of engagement differs between tilt and turn modes.
  3. Hinges: Specialized friction hinges are mounted on the side of the sash and frame. These allow for rotation in the turn mode and provide controlled resistance in the tilt mode.
  4. Tilt Limiter: A safety device, often part of the hinge or a separate block, that restricts the inward tilt angle for secure ventilation.
  5. Opening Stays (for Turn Mode): Arm(s) that hold the fully opened sash in position and prevent it from swinging too far.
  6. Weather Stripping: Complex perimeter seals and corner seals designed to maintain compression in both closed and tilted positions.

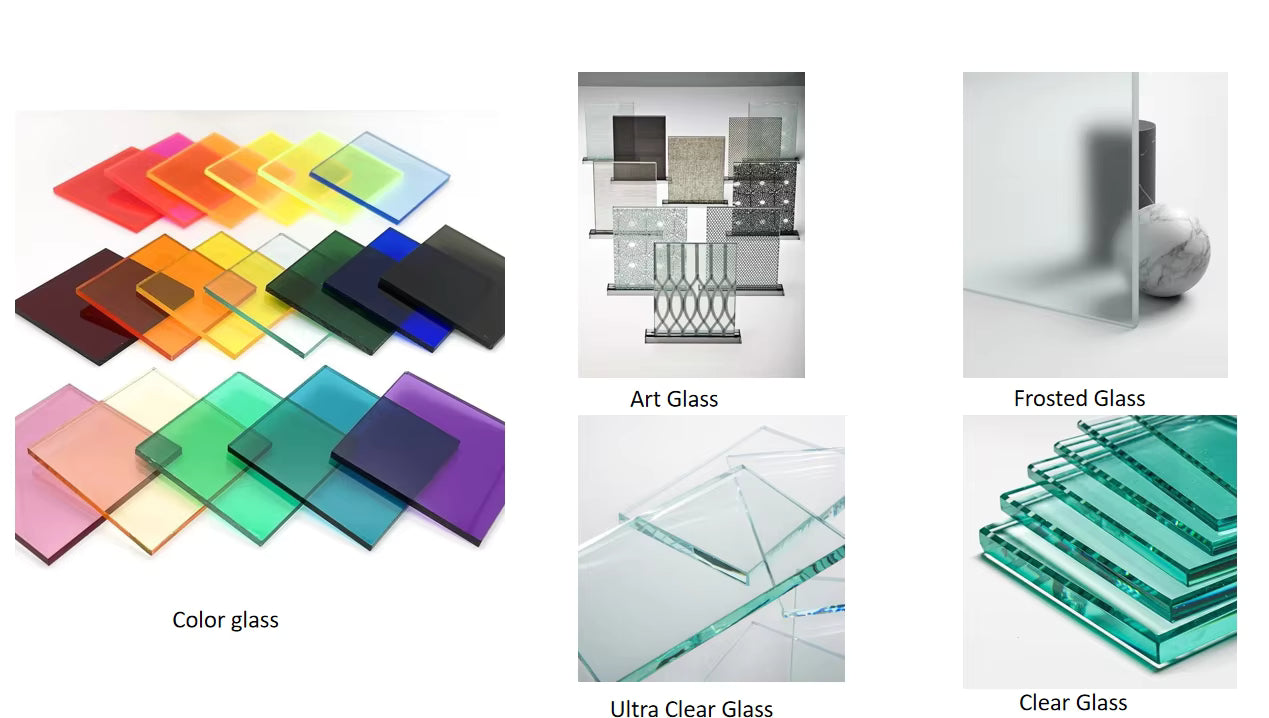

glass
