Cost-Effective Glass Railing Solution with U-Channel Framing

Cost-Effective Glass Railing Solution with U-Channel Framing

$99.00

Cost-Effective Glass Railing Solution

Discover a cost-effective glass railing solution without sacrificing style using U-channel framing. Compared to point-supported (spigot) systems, the U-channel method reduces fabrication and installation complexity, leading to significant savings. The continuous channel acts as both a structural support and a clean finish, eliminating the need for numerous individual fittings. This makes it an excellent budget-friendly choice for long linear applications like pool decks, long balconies, and commercial terraces. You still benefit from the transparency and modern appeal of glass, but with a simpler, more economical support system that is both architecturally pleasing and highly functional.

The Economical Advantage of Simplified Engineering
The key to its value lies in its efficient design. Unlike spigot systems that require numerous individually mounted fittings, our system uses a continuous, top-loading U-channel rail crafted from durable, extruded aluminum. This channel serves a dual purpose: it secures the tempered glass panels structurally and provides a finished, clean edge in one integrated component. This streamlined approach significantly reduces fabrication complexity, on-site labor time, and overall material costs, making it the smart choice for budget-conscious projects without sacrificing a high-end appearance.

Ideal for Long, Linear Applications
This system excels in extensive, straightforward runs where its efficiency shines brightest. It is the preferred solution for:

  • Residential Pool Decks & Long Balconies

  • Commercial Terraces & Public Walkways

  • Staircase Balustrades with Straight Sections
    The continuous line of the channel enhances the modern, linear architecture while providing a robust and code-compliant safety barrier.

All the Benefits of Glass, with Uncomplicated Support
You retain all the desired advantages of a glass railing:

  • Unobstructed Views & Light: Maintain clear sightlines and a bright, open atmosphere.

  • Modern, Minimalist Aesthetic: Achieve a clean, architectural look that elevates any property.

  • Durability & Easy Maintenance: Featuring tempered safety glass and weather-resistant aluminum finishes.

A Functional, Architecturally-Pleasing Solution
This is not merely a "budget option," but a purposefully designed system that makes sophisticated design achievable. It offers a perfect balance of form, function, and value, proving that transparency and style need not come with a prohibitive price tag.

Choose the U-channel glass railing system for projects where smart economics, straightforward installation, and contemporary style must go hand-in-hand. It is the clear, cost-effective path to a visually expansive and safe environment.

trust badge
Requesting a quote

We specialize in custom home decoration, not standard products. So if you are interested in requesting a quote, please click 'Contact' to get in touch. Our experienced team will design and create the product you desire.
Shipping

If you have your own freight forwarder, we can send the products to your forwarder .

If you don't have one, we can also ask our freight forwarder which we work with long-term to handle the transportation for you. We do not make a profit on shipping, so the shipping cost will not be high.
Manufacturing

Our products are manufactured in China and ship globally. We carefully select our material suppliers to ensure our products are high quality and a fair price.
Price level

We have broadest material options to offer. We can suggest you the suitable materials as per your need to control the price. Our products can satisfy different level market.
Creative CAD design

Hand over your floor plan or measurements data to us, and our elite design team will tailor a solution for you based on your specific specifications and provide carefully designed proposals to meet your unique needs.
Delivery time

Considering design and production ,our products are usually shipped by 20-50 workdays after payment. Different proudcts and quantity means different delivery time.
After-sales service

Our comprehensive after-sales support will give you peace of mind. Our professional sales team is committed to providing you with round-the-clock service to ensure seamless communication and satisfaction.

Brief Overview of U-channel Glass Railing

A U-channel glass railing is a modern, semi-framed system known for its clean lines and robust construction. It utilizes continuous metal channels with a U-shaped profile to secure the edges of glass panels, typically at the base and sometimes at the top. This method provides a sleek, linear aesthetic that offers more visual structure than a fully frameless spigot system, while maintaining greater continuity and simplicity than a post-and-clamp design. It effectively creates a defined boundary with a pronounced horizontal emphasis. The system is valued for its structural security, as the channels offer solid lateral support to the glass. It is a versatile choice for both straight runs and gentle curves on balconies, terraces, and staircases, delivering a contemporary yet substantial feel.

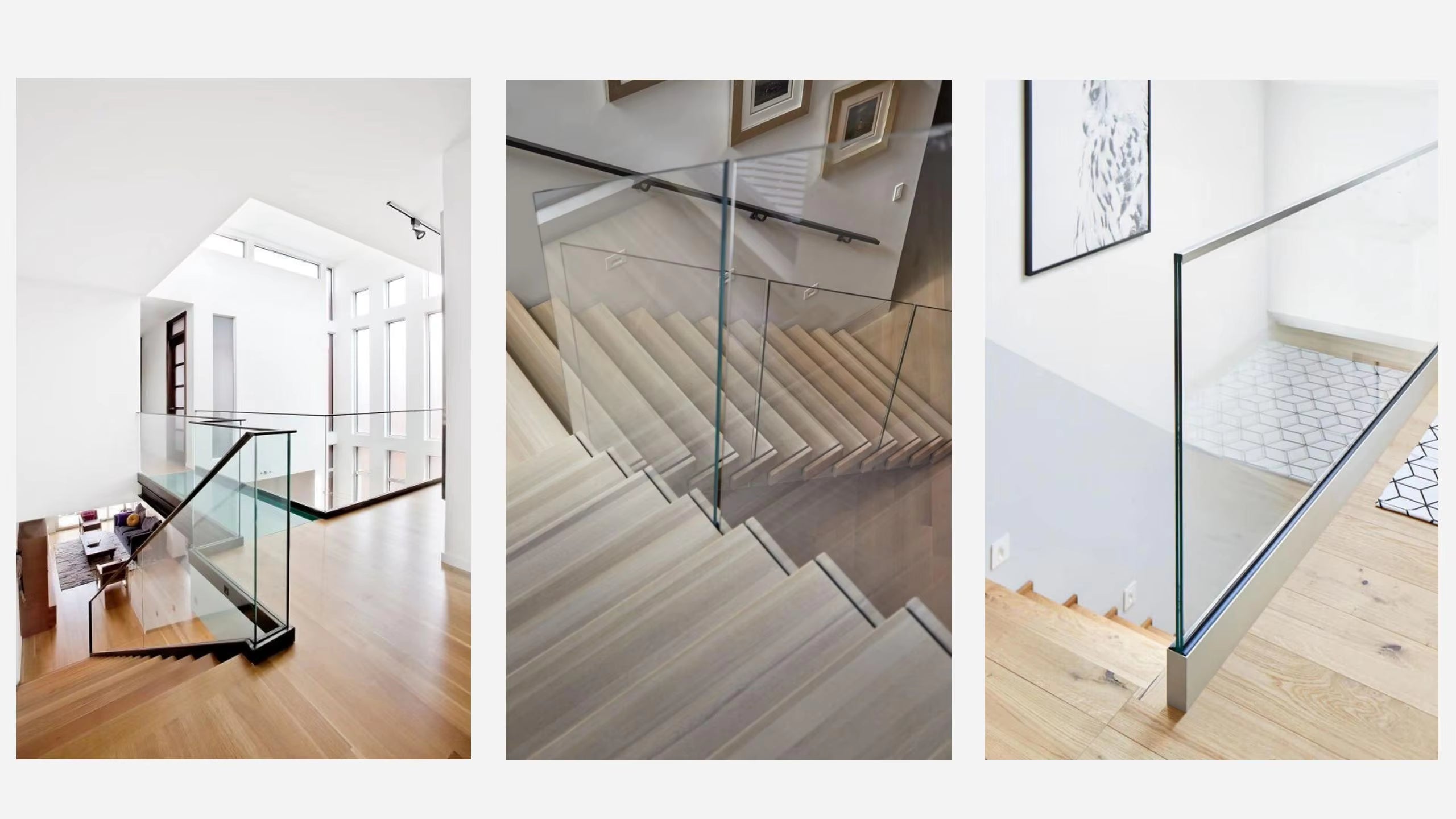

U_channel_railing_5
U_channel_railing_7

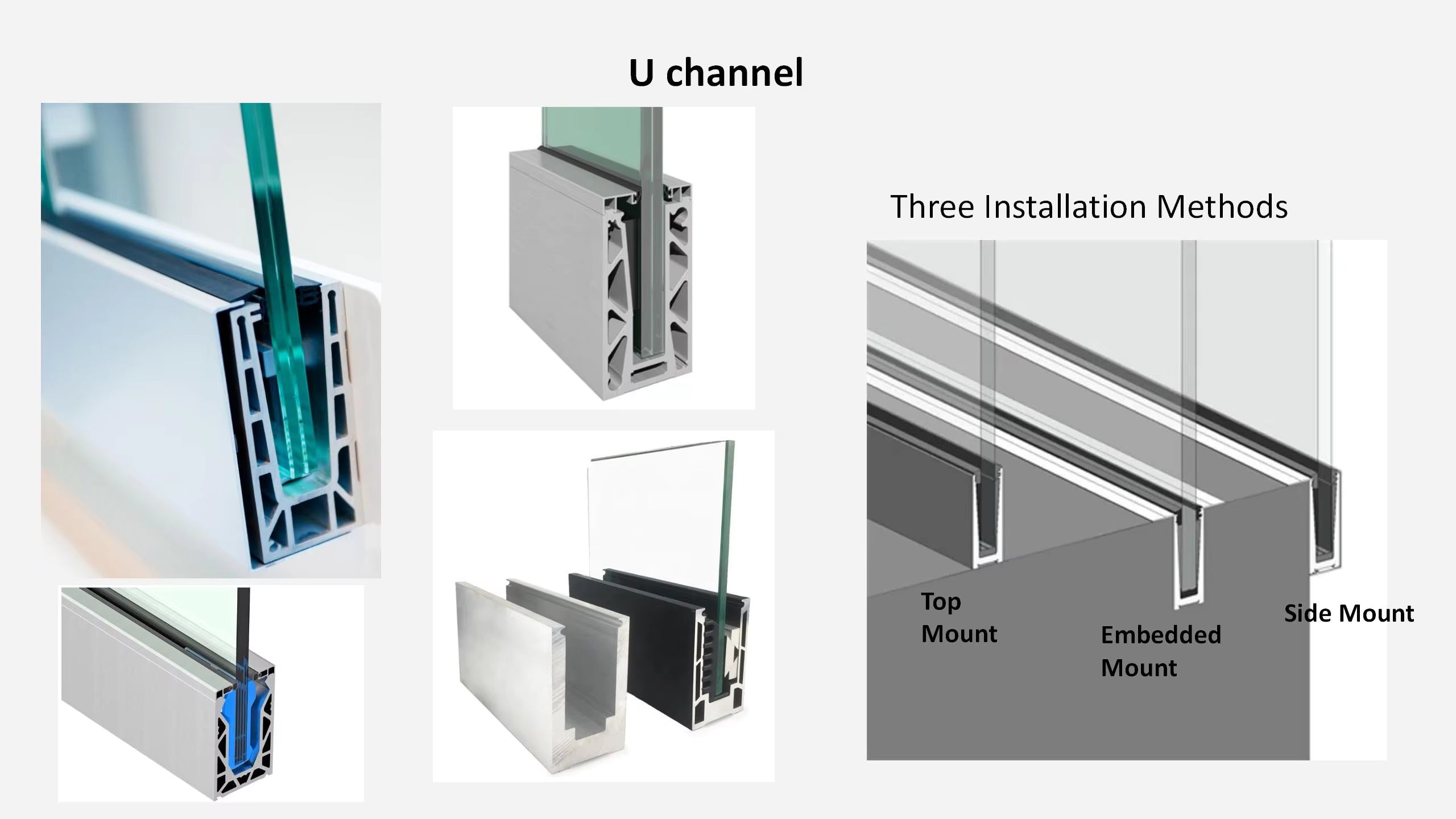

U-channel

The U-channel is the defining component, a long metal extrusion—typically aluminum or stainless steel—with a precise, inward-facing "U" profile. The glass panel is inserted into the channel's groove, which is then lined with a resilient spacer or gasket to cushion the glass and ensure a snug, rattle-free fit. The channel is finally sealed at the top with a snap-in glazing cap or bead, creating a finished appearance. This cap can be a simple flat cover or a integrated handrail. The channel serves as both a structural anchor and a visual frame, neatly concealing the glass edges and providing continuous support along its entire length. Its depth and thickness are engineered to meet specific load and wind resistance requirements.

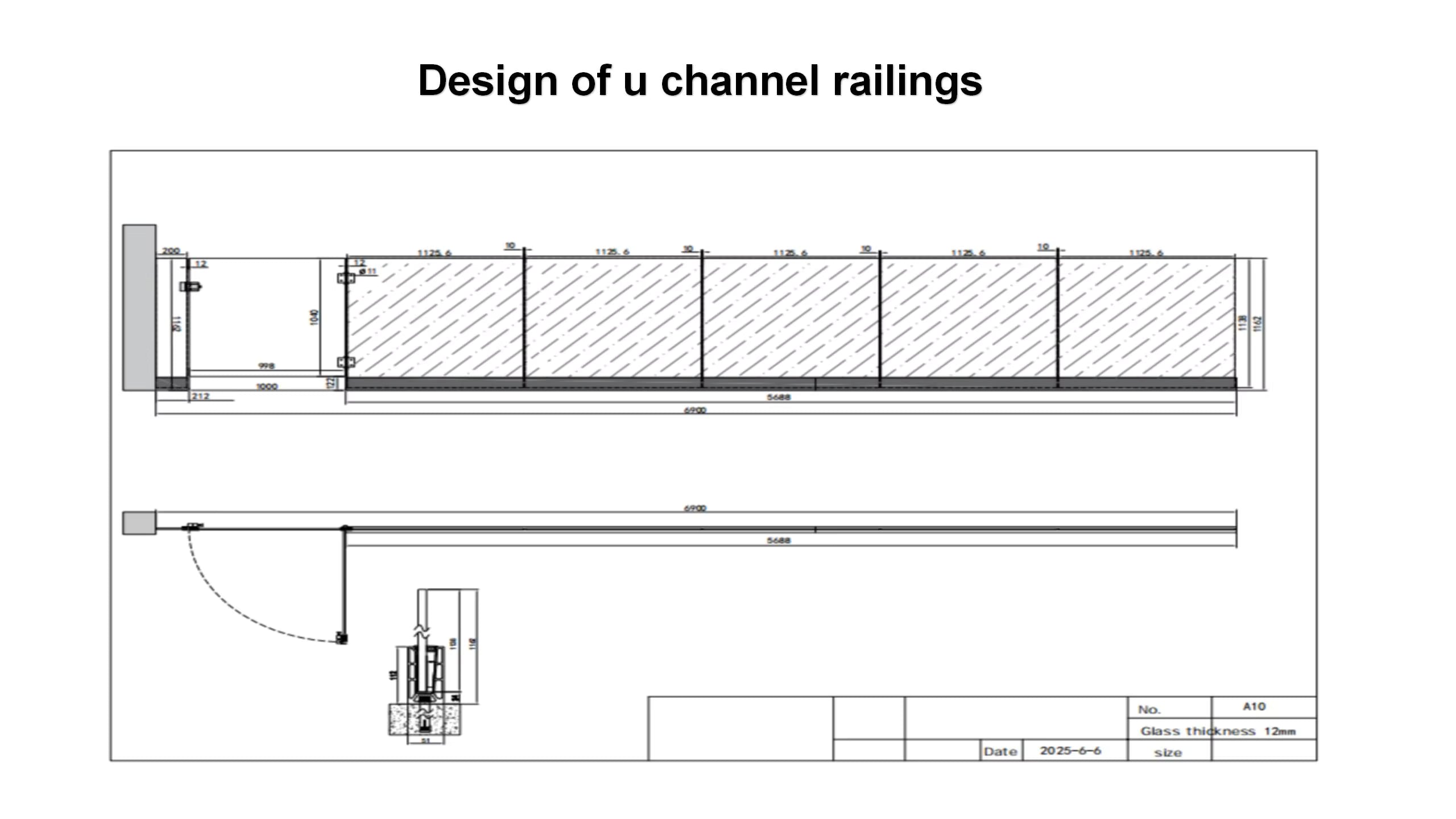

Design Drawings

The design and installation of a U-channel system prioritize precision and alignment. Detailed shop drawings specify exact channel lengths, glass dimensions, and joint locations. Key components include the base channel, securely anchored to the deck or stair tread, and the optional top channel or handrail assembly.Corner mitres and splice connectorsare used for longer runs or turns.Anchoring cleats or brackets fix the channel to the substrate, often with slotted holes for adjustment. The design must account for thermal expansion, water drainage from the channel, and a perfectly level installation to ensure the glass panels install smoothly. Proper engineering of the substrate connection is critical to transfer the imposed loads safely to the main structure.
design of u channel railing

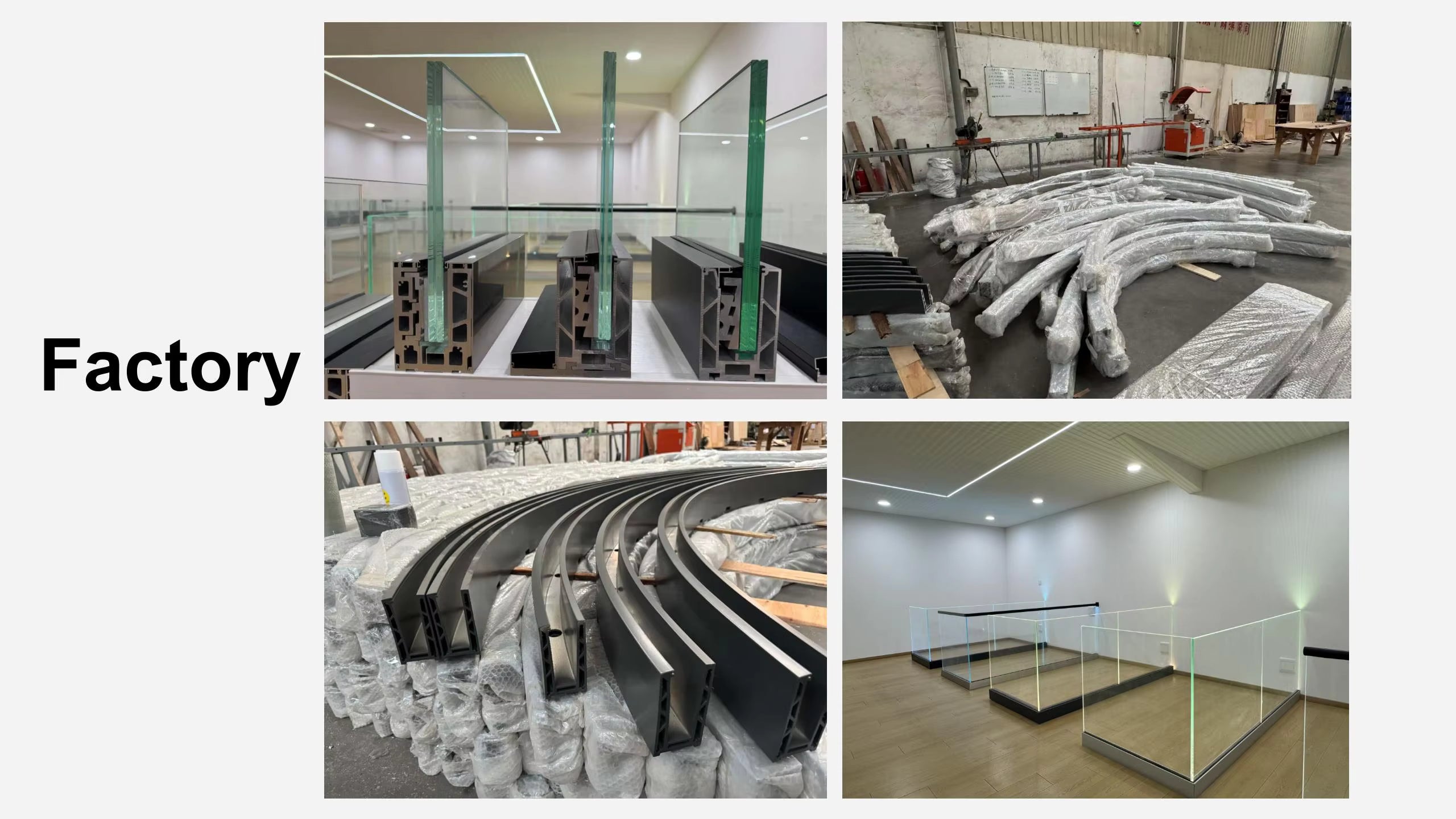

factory
