Custom Cable Railing Designs for Unique Architectural Projects

$59.00

Custom Cable Railing Designs

Realize a unique architectural vision with our Custom Cable Railing Designs . We specialize in engineering solutions for complex projects, including curved staircases, non-standard angles, and exceptional spans. From selecting post materials and finishes to calculating cable tension and layout, our experts handle every detail. Whether it's a dramatic multi-story atrium, a custom modern home, or a commercial landmark, we create one-of-a-kind cable systems that are as structurally sound as they are breathtaking. Collaborate with us to fabricate a signature railing that becomes an integral part of your project's design narrative.

trust badge

Requesting a quote

We specialize in custom home decoration, not standard products. So if you are interested in requesting a quote, please click 'Contact' to get in touch. Our experienced team will design and create the product you desire.

Shipping

If you have your own freight forwarder, we can send the products to your forwarder .

If you don't have one, we can also ask our freight forwarder which we work with long-term to handle the transportation for you. We do not make a profit on shipping, so the shipping cost will not be high.

Manufacturing

Our products are manufactured in China and ship globally. We carefully select our material suppliers to ensure our products are high quality and a fair price.

Price level

We have broadest material options to offer. We can suggest you the suitable materials as per your need to control the price. Our products can satisfy different level market.

Creative CAD design

Hand over your floor plan or measurements data to us, and our elite design team will tailor a solution for you based on your specific specifications and provide carefully designed proposals to meet your unique needs.

Delivery time

Considering design and production ,our products are usually shipped by 20-50 workdays after payment. Different proudcts and quantity means different delivery time.

After-sales service

Our comprehensive after-sales support will give you peace of mind. Our professional sales team is committed to providing you with round-the-clock service to ensure seamless communication and satisfaction.

Brief Overview of Wire-Cable Railing

A wire cable railing is a minimalist railing system defined by its use of thin, horizontal stainless steel cables under tension in place of traditional balusters or panels. Its core design philosophy prioritizes the preservation of sightlines, creating an exceptionally open, non-obtrusive barrier. While offering essential fall protection for decks, balconies, and staircases, it visually recedes, allowing for panoramic views and light transmission to remain almost completely unimpeded. The result is a sleek, modern aesthetic that blends industrial elegance with a sense of lightness. This system is particularly favored in residential and commercial settings with scenic surroundings, where it provides safety without competing with the landscape or architectural views.

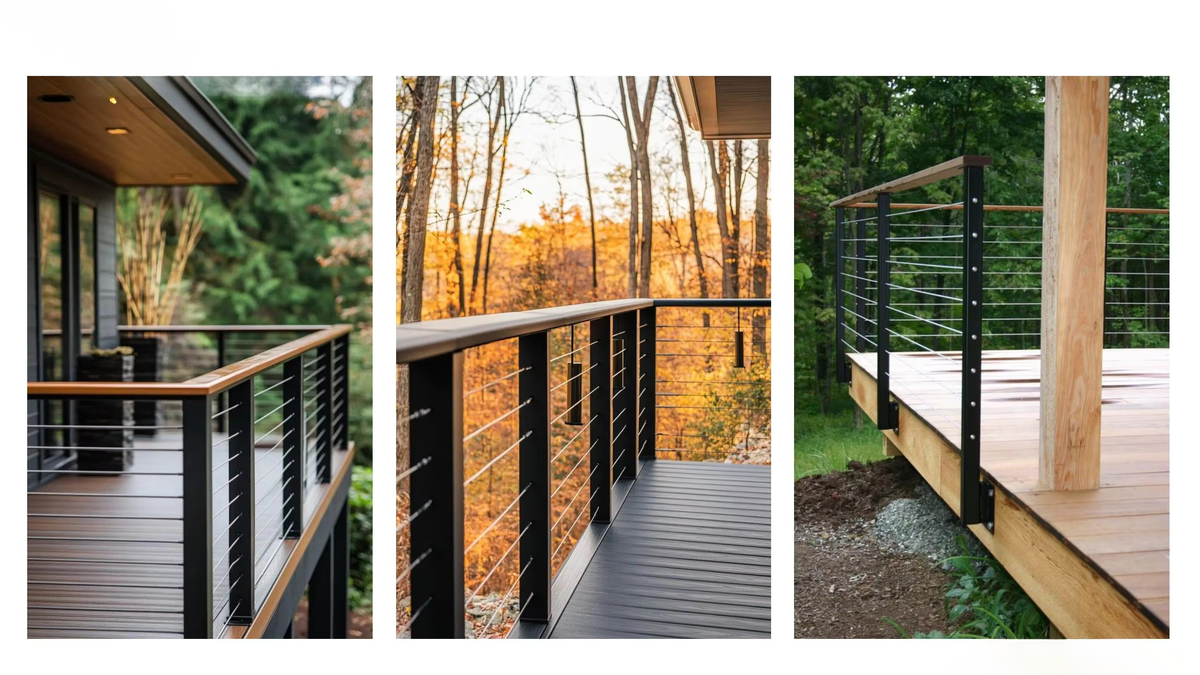

wire_cable_1

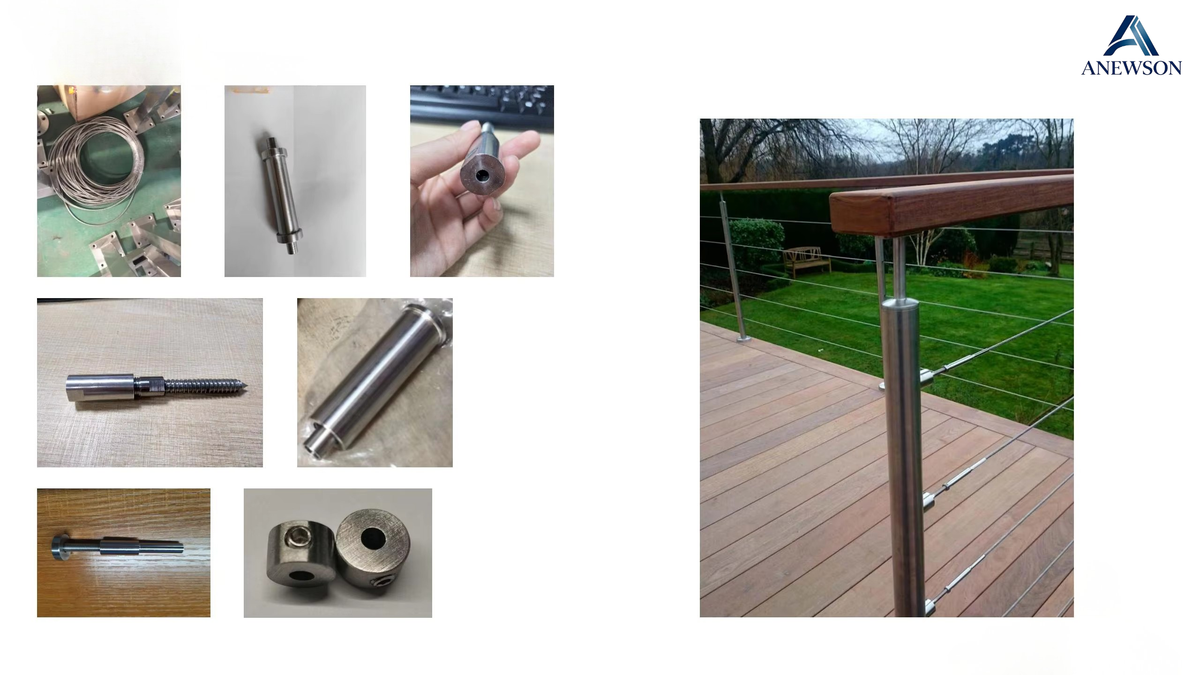

wire cable materail

Materail

The system's integrity relies on specific, high-quality materials. The primary component is stainless steel cable, typically Type 316 for superior corrosion resistance, ranging from 1/8" to 3/16" in diameter. The end fittings are crucial: these include turnbuckles for tensioning,stud terminals or ferrules swaged onto cable ends, and heavy-duty mounting plates or tensioner posts that anchor the system and withstand significant tensile loads. The structural framework consists of posts(wood, steel, or aluminum) and top/bottom rails, which must be robust enough to handle the constant inward pull of the cables. All hardware is usually marine-grade stainless steel to ensure durability and a uniform finish.

Design Drawings

The design of a wire cable railing is a precise engineering exercise centered on managing tension. Detailed drawings specify exact cable spacing (typically 3" to meet building codes), post centers, and the critical connection details for the tensioning hardware. Key components detailed include the end post assemblies with integrated turnbuckles or through-bolts,intermediate post sleeves with pass-through holes, and spacers to maintain consistent cable gaps. The drawings must calculate the structural loads transferred to the posts and substrate. They also dictate the specific sequence for installation, as uniform tension across all cables is essential to prevent sagging and ensure a rigid, safe, and visually consistent final installation.

design drawing
